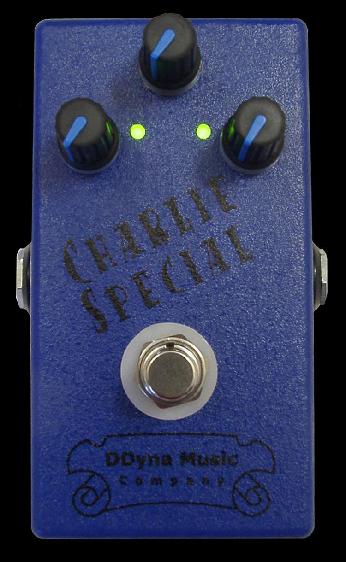

| What’s a Charlie Special?
Simply put, it’s a pre-amp, our signature limiter and a volume control. There are no markings of the controls or I/O, we feel anyone using this pedal will already know (or can figure it out very quickly) what it is and how it operates. For those that need a bit more information, there is a diagram in the manual.
Features genuine Neutrik jacks, true bypass (TPDT), precision carbon film resistors and reverse polarity protection in a compact, hardcoated case.
Check out the sound clips!
bypass first, then effect(s)
SAMPLE 1.MP3 (254K)
SAMPLE 2.MP3 (688K)
SAMPLE 3.MP3 (425K)
Like all DDyna Music Co products, the Charlie Special carries a 2 year warranty and provisions for ownership transfer.
CONTROLS:
DRIVE: Pre-Amp drive – 21dB to 39dB.
OVERDRIVE: Medium-hard limiter – medium to gritty limit.
VOLUME: Sets the output level.
SPECS:
Switching: True Bypass (TPDT)
Input Impedance: 300K (min)
Input Jack: Neutrik ¼ Inch Phone Jack, Switched
Output Impedance: Volume Dependent
Output Jack: Neutrik ¼ Inch Phone Jack
Current Consumption:
(Operating): 10mA @ 9VDC
(Standby): 8mA @ 9VDC
Battery Type: 9V (IEC 6LR61)
(Internal - Shrouded Battery Snaps)
External Power: 9VDC Regulated AC Adapter;
Voltage Range: 7.5VDC-12VDC
Connector: 2.1mm x 5.5mm, Tip Negative
Dimensions: 4.37(L) x 2.66(W) x 2.08(H)
Weight: 0.47 lbs.
MSRP: $179
|
|
|
|
|
